• Features

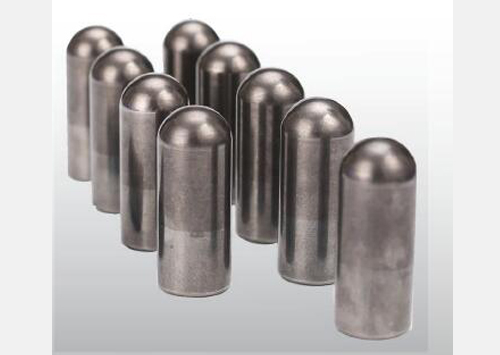

Composite Tungsten Carbide Technology

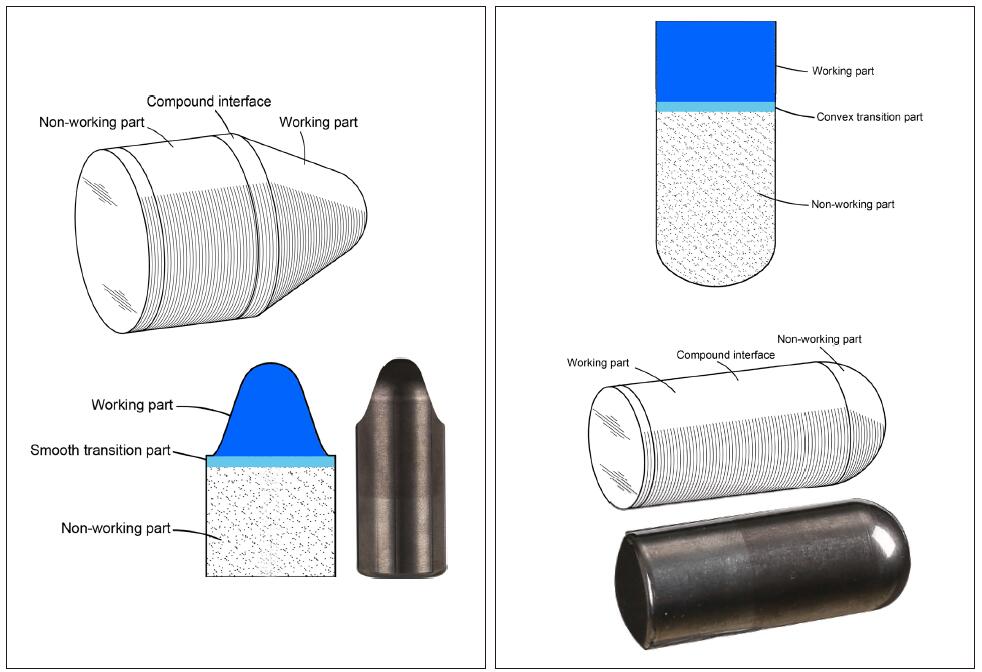

A composite tungsten carbide spherical button or insert, with heterogeneous composition and

structure, consists of a working part and a non-working part.



The working part is made of a tungsten carbide material consisting of  tungsten carbide powder

and cobalt powder or nickel powder by weight percentage.



The non-working part is made of a low density tungsten carbide material consisting of titanium

 carbide powder, tungsten carbide powder, and cobalt powder or nickel powder by weight

percentage. During pressing, the tungsten carbide material for the working part and the low density

tungsten carbide material for the non-working part are weighed and added to a steel die successively

for molding, and then the molded product is placed in a sintering furnace for sintering to obtain the

composite tungsten carbide spherical button or  insert with heterogeneous composition and structure.

Compared with traditional tungsten carbide spherical button or insert, the composite tungsten carbide

parts has the non-working part accounted for most of the overall product volume, has low density and

less material consumption, and can greatly reduce the raw material costs of the product, thus achieving

the purpose of significantly improving the performance-cost ratio of the product.
